2WD Chassis Dynamometer for Professional Tuning

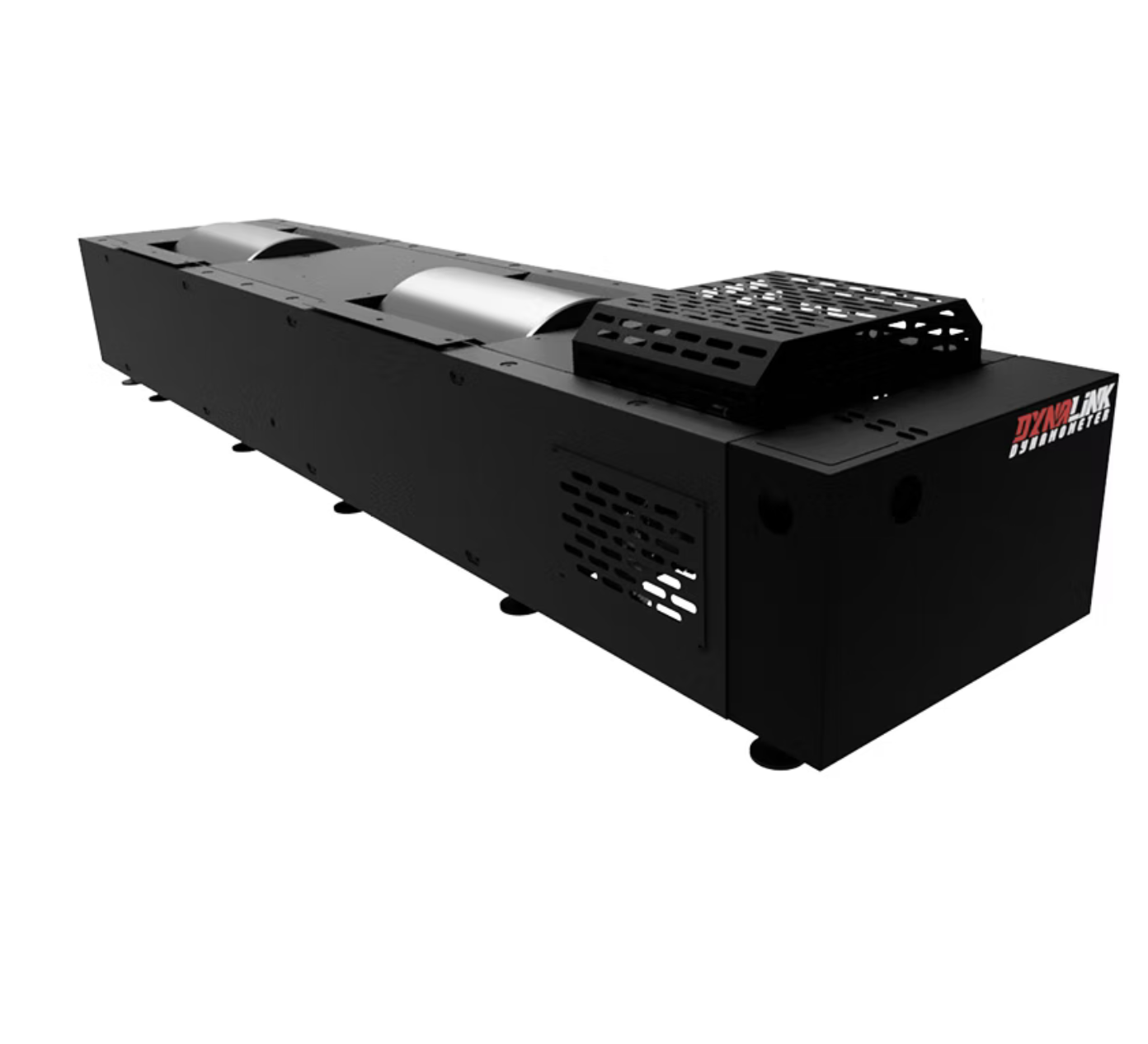

The 2WD-900 2WD chassis dynamometer is engineered for professional tuning workshops that require reliable power measurement and consistent performance testing. Designed specifically for rear-wheel or front-wheel drive vehicles, this system delivers stable data acquisition and strong load control for performance tuning applications.
Because accurate power measurement is essential in modern engine calibration, a high-quality chassis dynamometer plays a critical role in business growth and customer confidence.
520mm Rollers for Superior Traction
One of the standout features of this 2WD chassis dynamometer is its large 520mm rollers. The increased roller diameter improves tyre contact and traction during high-power runs.
As a result, wheel slip is reduced, ensuring more stable readings and smoother testing sessions. This design is particularly beneficial when tuning high-performance vehicles with significant torque output.
2700Nm Eddy Current Brake System
The 2WD-900 is equipped with a single 2700Nm eddy current brake, capable of handling up to 95% of typical performance vehicle power absorption requirements.
In addition, transient peak absorption reaches up to 950HP (cold conditions). This makes the system suitable for a wide range of performance builds, from street vehicles to modified high-output cars.
The eddy brake system provides precise load control, allowing tuners to simulate real-world driving conditions during mapping and calibration.
Stable Power Measurement and Data Control
A professional 2WD chassis dynamometer must deliver repeatable and consistent data. The 2WD-900 is designed to provide controlled load application and smooth acceleration testing.
Because reliable data is essential for ECU calibration and tuning validation, this system supports workshops that prioritise accuracy and professionalism.
Built for Business Growth
Beyond technical performance, the 2WD-900 is a strategic investment for tuning businesses. By offering in-house dyno services, workshops can:
-
Provide verified power results
-
Increase service revenue
-
Enhance customer trust
-
Offer professional tuning packages
Therefore, this 2WD chassis dynamometer not only improves tuning precision but also contributes directly to workshop profitability.
Designed for Performance Workshops
This system is suitable for:
-
Performance tuning centres
-
Automotive workshops
-
ECU calibration specialists
-
Motorsport preparation facilities
With robust construction and professional-grade braking capacity, the 2WD-900 provides a balance between performance capability and investment value.
Technical Overview
Key specifications include:
-
520mm roller diameter
-
2700Nm eddy current brake
-
Up to 950HP transient peak absorption (cold)
-
Designed for 2WD vehicle testing
These features position the 2WD-900 as a reliable solution for performance-focused automotive businesses.
